1. Introduction
-
DTC = Diagnostic Trouble Code
-
They are your vehicle’s built-in “error messages.”
-
Help reduce downtime, improve safety, and guide repair decisions.
2. DTC Meaning
| Term | Full Form | 설명 | Example Usage |
|---|---|---|---|
| DTC | Diagnostic Trouble Code | Error code generated when sensors detect faults | “The OBD system triggered a DTC for the fuel system.” |
| What does DTC mean in a car? | A standardized way to report faults | Identifies issue type and severity | Check Engine Light → P0300 |
| DTC Automotive | Diagnostic system across cars and fleets | Works with OBD-II & J1939 standards | Used in fleet telematics systems |
3. OBD Systems Overview
| System | 주요 특징 | Limitation | More Info |
|---|---|---|---|
| OBD-I | Manufacturer-specific codes, early fault detection | Limited compatibility | OBD-I vs OBD-II |
| OBD-II | Standardized codes across vehicles, 5-character format | Only for light/medium duty | Adopted worldwide since 1996 |
| J1939 | Heavy-duty standard (SPN/FMI codes) | More complex to interpret | Used in trucks, buses, and construction |
4. OBD-II DTC Code Structure
| Character | Meaning | Example (P0128) |
|---|---|---|
| 1st | System (P=Powertrain, B=Body, C=Chassis, U=Network) | P = Powertrain |
| 2nd | 0=Generic, 1=Manufacturer-specific | 0 = Generic |
| 3rd | Subsystem (Fuel, Ignition, Emissions, etc.) | 1 = Fuel & Air |
| 4th–5th | Fault Identifier | 28 = Thermostat issue |
5. J1939 DTC Structure (Heavy-Duty Vehicles)
| Component | Meaning | Example |
|---|---|---|
| SPN | Suspect Parameter Number | 111 = Engine Coolant Temperature |
| FMI | Failure Mode Identifier | 1 = Data valid but above normal range |
| OC | Occurrence Count | 5 = Occurred 5 times |
| SA | Source 주소 | 49 = Engine ECU |
6. Severity Levels of DTC Codes
| Severity | 설명 | Example DTC | Action |
|---|---|---|---|
| Critical | Safety issue, stop driving immediately | Brake failure code | Immediate service |
| Moderate | Needs service soon, not urgent | Transmission slipping | Schedule repair |
| Minor | Low impact, monitor until next maintenance | Loose fuel cap (EVAP leak) | Inspect at the service |
7. Troubleshooting Examples
For P0128 (Coolant Thermostat Issue), use an illustration:
-
Thermostat location in the cooling system
-
Dashboard “Check Engine Light”
-
Short caption: “P0128 indicates engine not reaching proper operating temperature. Often linked to thermostat or coolant sensor issues.”
Other Common Codes (Tabular Form)
| Code | Meaning | Likely Causes | Fix Suggestion |
|---|---|---|---|
| P0442 | Small EVAP system leak | Loose gas cap, cracked hose | Tighten cap, check EVAP lines |
| P0300 | Random misfire detected | Faulty spark plugs, ignition coil | Replace plugs/coils, check injectors |
| P0420 | Catalyst system efficiency is low | Catalytic converter, O2 sensor | Inspect/replace converter |
8. Reading and Diagnosing DTCs
| Method | Tool Needed | Advantage | 참고 |
|---|---|---|---|
| Basic Scanner | OBD-II handheld scanner | Affordable, quick | Limited details |
| Advanced Scanner | Professional diagnostic tool | More data, freeze-frame | Costly |
| Telematics Tracker | GPS + OBD device | Remote, real-time alerts | Fleet-friendly |
| Cloud Dashboard | Telematics platform | KPI integration | Needs subscription |
🔎 See more: OBD Tracker Capabilities
9. DTCs in Fleet Management
| Challenge | DTC Solution | Tool Example |
|---|---|---|
| Unexpected breakdowns | Real-time DTC alerts | R58L Vehicle GPS Tracker |
| High maintenance cost | Prioritize by severity | Cloud-based dashboard |
| Poor scheduling | Predictive maintenance | DTC trend analysis |
| Safety compliance | Early fault detection | Integrated telematics |

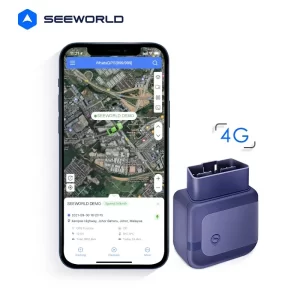

R58L 4G tracker
10. Advanced Topics
| Area | Application | Benefit |
|---|---|---|
| EV & Hybrid DTCs | Battery, inverter, charging | Extended system monitoring |
| Predictive Maintenance | Pattern recognition in codes | Reduce downtime |
| Compliance | DOT & EPA standards | Safer, legal fleet ops |
| Trend Analysis | DTC frequency mapping | Identify recurring faults |
11. Glossary
| Term | Meaning |
|---|---|
| DTC | Diagnostic Trouble Code |
| OBD | Onboard Diagnostics |
| SPN | Suspect Parameter Number |
| FMI | Failure Mode Identifier |
| Freeze Frame | Snapshot of sensor data when the fault occurred |
12. FAQ (Quick Scan Format)
-
What is DTC in a car? → Error code from onboard diagnostics.
-
What does DTC stand for? → Diagnostic Trouble Code.
-
Do all codes require repair? → No, some are minor (fuel cap), others critical (brake fault).
-
Can I clear a DTC myself? → Yes, but it may return if the problem persists.
13. Conclusion
-
DTCs = the “language of your car.”
-
They improve safety, reduce downtime, and guide maintenance.
-
For fleets, pairing diagnostic data + GPS tracking (e.g., R58L) turns codes into actionable insights.
